18" Industrial Wood Bandsaw with Brake

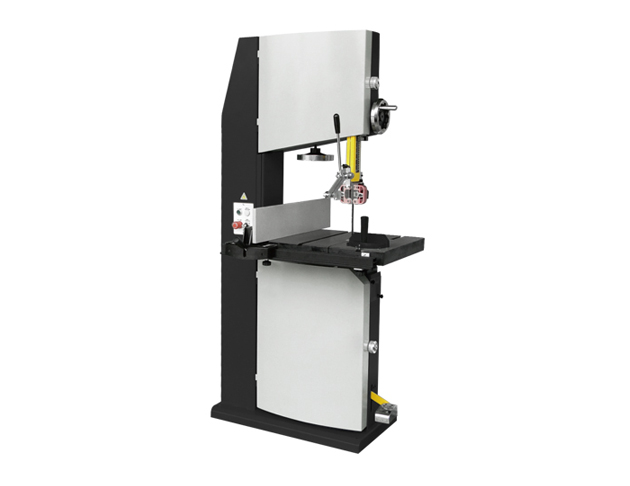

YES-18LG 18" Industrial Wood Bandsaw with Brake
- Enjoy the benefits of a large capacity vertical bandsaw with the ability to make internal cuts in one self-contained machine.
- Equipped a powerful 3 horsepower in the European-style one-piece solid welded frame and dynamically balanced cast-iron wheels ensure vibration-free operation.
- With exceptional re-saw capacity and compatibility with blades as wide as 11/2”, Industrial 18" heavy-duty bandsaw YES-18LG is designed to meet the needs of mid-sized production shops, serious hobbyists and educational facilities.
Band Saw Identification
Wood Bandsaw Features
The bandsaw is without a doubt one of the most useful and versatile pieces of equipment that any woodworker can have. This is mainly due to its ability to cut deep sections as well as curved and straight lines.
Taking up minimal floor space and with a vast range of blades available, the bandsaw is an indispensable asset. The ability to rip, cross-cut, resaw, cut wafer thin veneers, tenon cheeks, bevels, curves and even circles makes the bandsaw the most versatile machine in the workshop.
Cast iron wheels
If the wheels are heavier, you will have more inertia, which would help in handling peak loads. It follows that any operation where the blade is bogged down for a short while, the heavier wheels will get you through more likely.
3 HP MOTOR
Much powerful 3 horse power. The advantage is the higher horse power will bring the higher cutting capacity.
Safety mag switch
Keyed lockout safety mag switch adds operator safety and protects motor from overload.
Massive C type blade guide
- 10 point quick-set guide system is accurate and easy to set up.
- A patented blade guide system helps keep the blade perfectly aligned for precise cuts.
Foot brake system
Foot brake with safety electrical lock out delivers quick braking and increased operator control.
Finger protector
Unique short stock feed system keeps hands free from injury.Cast iron table
The 20” x 24” all cast iron table /w T-slot x 2 pcs, and has the ability to tilt to 45 degrees
Band saw optional accessories
There are multipurpose optional accessories for bandsaw, which will increase the working efficiency and add the possibilities for more cutting methods.
Q Fence Assy
RS Fence Assy
Laser Liner device with Magnetron
6"(150mm) Resaw Plane
LED Light W/ Magnet Seat
-thvuwx.jpg)
Miter gauge fence jig
左右尚有資訊2. The 20” x 24” all cast iron table /w T-slot x 2 pcs, and has the ability to tilt to 45 degrees
3. European-style one-piece solid welded frame
4. Dynamically balanced cast-iron wheels ensure vibration-free operation
5. 10 point quick-set guide system is accurate and easy to set up
11. Foot brake with safety electrical lock out delivers quick braking and increased operator control
12. Unique short stock feed system keeps hands free from injury
13. Includes deluxe fence system with cast-iron miter gauge
14. Built-in dust collection ports
15. Keyed lockout safety mag switch adds operator safety and protects motor from overload
16. Equipped 220 volt single phase 3 horsepower
17. A patented blade guide system helps keep the blade perfectly aligned for precise cuts.
18. Cutting height 16” and has a large 17-5/8” throat depth.
19. Finger protector removes the need to bring your fingers close to the cutting blade and down depending on your depth of cut.
| Model No. | YES-18LG |
| Wheel Diameter | 18" (457mm) |
| Throat Capacity(Left of Blade) | 17⅝"(448mm) |
| Max. Resaw Height | 16"(406mm) |
| Motor Size | 220V,1PH,4P/ or 3PH |
| Motor Voltage | 220V |
| Blade Capacity | ¼"~1¼" (6~32mm) |
| Blade Length | 153½" (3900mm) |
| Blade Speed(FPM) | 2800 , 3950 |
| Blade Release | Handlewheel |
| Table Size | 20" x 24" (508mm x 610mm) |
| Dust Port | Cast lron |
| Table Tilt | 0°~45° |
| Table Bracket | Cast lron |
| Machine Weight(KGS) | 275 KGS |
| Footprint | 42" x 61" x 86" |
