10" Deluxe Heavy-Duty Wood Bandsaw
Best choice for small &
Powerful 10 inch bench type band saw
- YES-1008L is the most powerful machine in a small space and the most powerful 10-inch bench type band saw on the market.
- This band saw is specially developed and designed by us for the DIY users who need to move the machine to other floors.
- Although it is a bench type band saw, it can be used directly on the ground after adding a stand, which also has a thoughtful rear wheel design, so that you can easily move the position of the machine anytime.

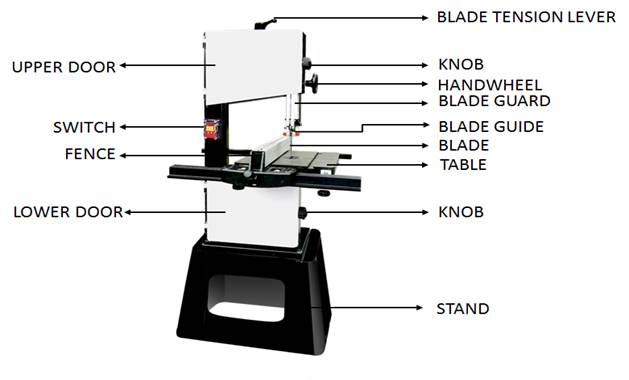

Band Saw Identification

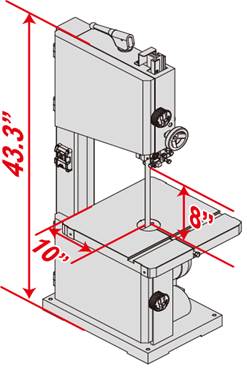

Band Saw Dimensions
Wood Bandsaw Features
The bandsaw is without a doubt one of the most useful and versatile pieces of equipment that any woodworker can have. This is mainly due to its ability to cut deep sections as well as curved and straight lines.
Taking up minimal floor space and with a vast range of blades available, the bandsaw is an indispensable asset. The ability to rip, cross-cut, resaw, cut wafer thin veneers, tenon cheeks, bevels, curves and even circles makes the bandsaw the most versatile machine in the workshop.
Quick release blade tension
A properly tensioned blade is essential for making
accurate cuts and is a prerequisite for making
many bandsaw adjustments. The blade tension is
adjusted by rotating the blade tension lever.
Cast iron wheels
If the wheels are heavier, you will have more inertia, which would help in handling peak loads. It follows that any operation where the blade is bogged down for a short while, the heavier wheels will get you through more likely.

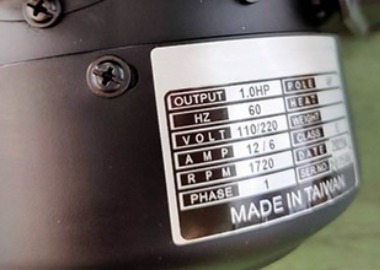

1 HP MOTOR
Much powerful horse power 1HP than the 10" bandsaw in the market. Almost 10" bandsaw is 1/2" or 1/4" horse power. The advantage is the highr horse power will bring the higher cutting capacity.
Special Dust Collection Design
- Increase dust collection effect
- 1 "dust collection tube
- Easy assembly
- High efficiency

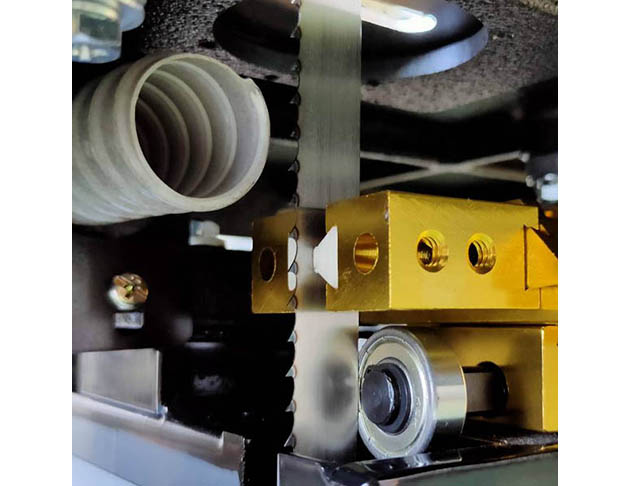

Gear type guide post
- Better than manual type guide post
- Sturdy construction
- Simple operation
- High precision
CE switch
- CE switch is available
- Compliance with safety regulations
- Suitable for school use
Cast iron table
- The table can tilt up to 45 degrees to the right
- Sturdy construction
- 14"x 14"all cast iron table /w T-slot
- Precision ground table
There are multipurpose optional accessories for bandsaw, which will increase the working efficiency and add the possibilities for more cutting methods.
Q Fence Assy
J Fence Assy
Circle cutting jig
Bakelite Type Bandsaw Blade Guide
Bearings Type Bandsaw Blade Guide
Deluxe Cabinet Stand
Semi-enclosed stand with wheels
Bandsaw Sanding kit
Miter gauge fence jig

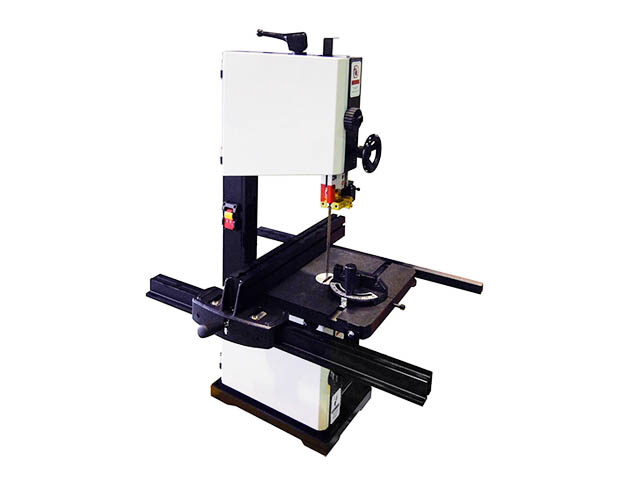

左右尚有資訊- This 10” bandsaw YES-1008L has all the features of larger bandsaws in one compact machine.
- Equipped 1HP motor and it could hold saw blade with the width of 1/8”-3/4” and cutting height of 8”.
- The optimized design of the cast iron table and the rigid structure makes the quiet and more stable operation.
| Model No. | YES-1008L |
| Wheel Diameter | 10" |
| Throat Capacity(Left of Blade) | 10"(250mm) |
| Max. Resaw Height | 8"(204mm) |
| Motor Size | 1HP |
| Motor Voltage | 110/220V |
| Blade Capacity | ⅜"~ ¾“(6~19mm) |
| Blade Length | 84.5"(2145mm) |
| Blade Speed(FPM) | 3000 ↑ |
| Blade Release | Quick Release |
| Table Size | 14"x 14"(35.6x35.6 cm) |
| Table Type | Cast lron |
| Table Tilt | 0°~45° |
| Table Bracket | Cast lron |
| Machine Weight(KGS) | 40 KGS(W/O stand)/62 KGS(W/ stand) |
| Footprint | 80cm x 70cm x 160cm |
