Production information
YES-700GX-G Portable Band Saw Mill By Engine
- The horizontal woodworking band saw is mainly used for cutting logs and large columnar wood, and cutting cylindrical logs and columns into sheet-like plates or angle wood.
- What the simple basic operation process is after the wood is fixed on the mechanical track, by pushing the machine forward and simultaneously cutting the saw, the thickness of the pre-cut saw can be adjusted before cutting, so that the machine can be cut along the plane of the wood.
- A cutting method in which the wood does not move and the machine table slides to push the saw.
Wood Band Sawmill Features
A band sawmill is made up of a saw head with 2 band wheels. They have a flexible steel band blade that tracks around the band wheels. It has a frame with a track that guides the saw head through the log. The operator or sawyer pushes the saw head into the log to cut.
- 270c.c. Gas Engine W/ Electric Start (optional : 390cc , 670cc)
- Quickly adjusted the head up and down to change board thickness by a gear box.
- Four integral levelers for section quick setup.

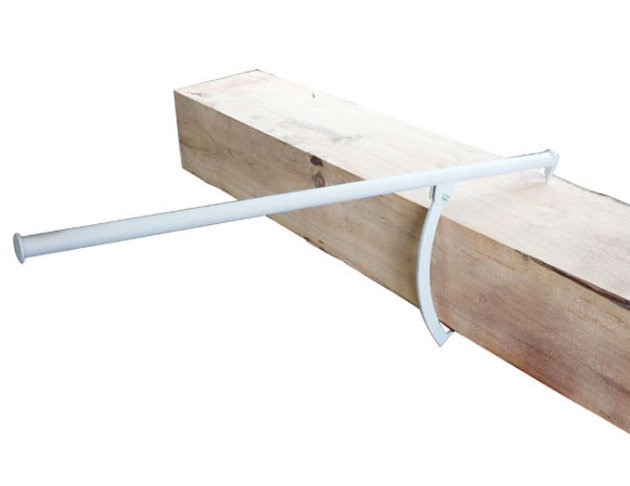

Band sawmill optional accessories
There are multipurpose optional accessories for sawmill, which will increase the working efficiency and add the possibilities for more cutting methods.
2.Quickly adjusted the head up and down to change board thickness by a gear box.
3.Four integral levelers for section quick setup.
左右尚有資訊
Model No | YES-700GX-E |
Power Source | Engine 270/390/670 c.c Electronic starting |
Max. Log Diameter | 27.6" (700mm) |
Max. Opening Between Blade Guide | 25.6" (650mm) |
Max. Elevation of Blade | 6.8" (680mm) |
Min. Blade Height from Support Beam | 1" (25mm) |
Max. Log Length (Standard) | 122" (3.1M) |

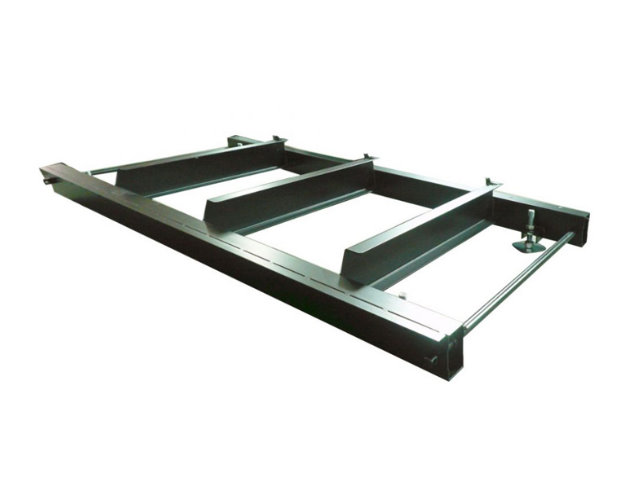

Track Section | 76.7" x 2 PCS (1.95M x 2 PCS) |
Min. Log Length | 23.6" (0.6M) |
Blade Tension | Quick Release |
Bandweel Diameter | 18.9" (480mm) |
Bandweel Width | 0.9" (23mm) |
Saw blade | 4010mm x 32(35)mm - 7/8" TOOTH |
Kerf Thickness | 0.1" (3mm) |
Sawblade Speed |
21.5M/s |
Track Section | 1.95 M/set (optional): 130 KGS |
Machine Weight(KGS) | 650 KGS |
Footprint | 3990(W) x2000(L) x2100 mm(H) |
Advantages
1.270c.c. Gas Engine W/ Electric Start (optional : 390cc , 670cc)
2.Quickly adjusted the head up and down to change board thickness by a gear box.
3.Four integral levelers for section quick setup.
2.Quickly adjusted the head up and down to change board thickness by a gear box.
3.Four integral levelers for section quick setup.
Specifications
左右尚有資訊
Model No | YES-700GX-E |
Power Source | Engine 270/390/670 c.c Electronic starting |
Max. Log Diameter | 27.6" (700mm) |
Max. Opening Between Blade Guide | 25.6" (650mm) |
Max. Elevation of Blade | 6.8" (680mm) |
Min. Blade Height from Support Beam | 1" (25mm) |
Max. Log Length (Standard) | 122" (3.1M) |
Track Section | 76.7" x 2 PCS (1.95M x 2 PCS) |
Min. Log Length | 23.6" (0.6M) |
Blade Tension | Quick Release |
Bandweel Diameter | 18.9" (480mm) |
Bandweel Width | 0.9" (23mm) |
Saw blade | 4010mm x 32(35)mm - 7/8" TOOTH |
Kerf Thickness | 0.1" (3mm) |
Sawblade Speed |
21.5M/s |
Track Section | 1.95 M/set (optional): 130 KGS |
Machine Weight(KGS) | 650 KGS |
Footprint | 3990(W) x2000(L) x2100 mm(H) |
